How Automatic Emergency Braking Works A Comprehensive Guide

How automatic emergency braking works is a fascinating aspect of modern vehicle safety. This system, designed to prevent collisions, uses a complex interplay of sensors, algorithms, and braking systems to react to potential hazards. Understanding the intricacies of AEB is crucial for appreciating the technology behind driver assistance systems and their role in reducing accidents.

From the initial detection of a potential hazard to the precise execution of the braking maneuver, AEB employs a series of sophisticated steps. Different sensor types, such as radar and cameras, play a critical role in detecting objects and calculating distances. The system then determines if an intervention is necessary, considering factors like speed and distance, and finally activates the braking system.

This detailed overview will provide a comprehensive look into the technology.

Introduction to Automatic Emergency Braking (AEB)

Automatic Emergency Braking (AEB) systems are designed to mitigate the risk of collisions by automatically applying the brakes when a potential hazard is detected. This proactive approach can prevent accidents or significantly reduce their severity. The fundamental principle is to anticipate and react to potential dangers in the surrounding environment.AEB systems work by using various sensors and algorithms to detect vehicles, pedestrians, and other objects in the path of the vehicle.

This data is processed rapidly to assess the risk of a collision and initiate a braking response if necessary. The goal is to intervene before the driver has time to react, thereby preventing a collision or lessening the impact.

AEB System Types, How automatic emergency braking works

Different AEB systems utilize various sensing technologies and approaches. The primary distinction often lies in the detection area and the objects they target.

Forward-Facing AEB

Forward-facing AEB systems focus on objects directly ahead of the vehicle. These systems typically utilize cameras and radar sensors to detect vehicles, pedestrians, and cyclists in the immediate vicinity. This approach is prevalent and relatively effective in preventing collisions with vehicles traveling in the same lane. They are also crucial in preventing collisions with slower-moving objects in front.

Surround-View AEB

Surround-view AEB systems expand the detection area beyond the immediate front of the vehicle. They often integrate multiple sensors, including cameras and radar, strategically positioned around the vehicle. This approach provides a broader view of the surroundings, enabling the system to detect objects from the sides and rear, increasing the chances of preventing collisions in a wider range of scenarios.

This is particularly helpful in parking lots or crowded areas.

Table Comparing AEB System Types

Sensor Technology in AEB

Automatic Emergency Braking (AEB) systems rely heavily on precise and timely detection of potential hazards. This crucial function is accomplished through various sensor technologies, each with its own strengths and limitations. Understanding these technologies is key to appreciating the sophistication and safety of modern AEB systems.

Radar Sensors

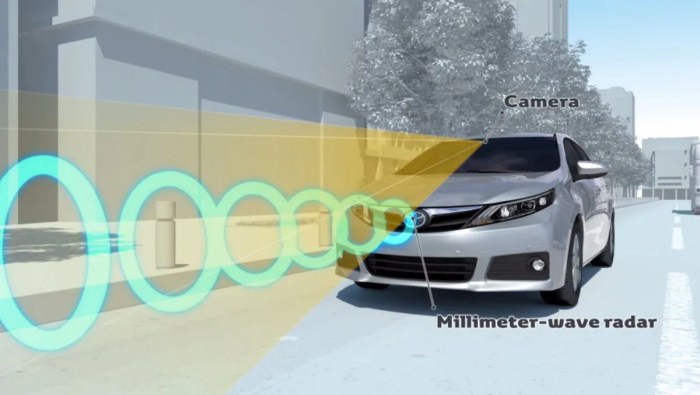

Radar sensors are a fundamental component in AEB systems. They operate by emitting radio waves and measuring the time it takes for these waves to reflect off objects. The difference in the time taken for the return signal gives the sensor information about the distance to the object and its relative speed. This allows the system to assess the likelihood of a collision and initiate appropriate braking action.

Radar sensors excel at detecting vehicles and other large objects at a distance, making them valuable for preventing rear-end collisions. Their accuracy in determining the relative speed of detected objects is another strength.

Camera Sensors

Camera-based systems use visual information to detect objects. These sensors are able to identify vehicles, pedestrians, and other objects within their field of view. The system analyzes the visual data to determine the object’s position, size, and speed, allowing for the calculation of a collision risk. The ability of cameras to distinguish different objects, such as pedestrians from vehicles, is a significant advantage, enabling more targeted braking responses.

However, adverse weather conditions like heavy rain or snow can significantly affect the accuracy of camera-based systems.

Lidar Sensors

Lidar sensors use light pulses, similar to radar, but utilize laser beams instead of radio waves. They measure the time it takes for these laser pulses to reflect off objects, providing detailed 3D information about the environment. This allows for highly accurate object detection, even in challenging conditions like fog or darkness. Lidar sensors are capable of generating a comprehensive point cloud of the surrounding area, offering a detailed representation of the environment, which can help AEB systems react to dynamic situations more effectively.

However, lidar sensors are typically more expensive than radar or camera systems.

Sensor Comparison

The table above provides a general comparison of sensor technologies. Note that these ranges, accuracy, and costs can vary depending on the specific sensor model and the system’s design.

Object Recognition and Distance Calculation

AEB systems rely heavily on accurately identifying potential hazards and precisely calculating distances to them. This allows the system to react swiftly and effectively to prevent collisions. The accuracy of these calculations directly impacts the safety and reliability of the AEB function.

Hazard Identification

AEB systems utilize a variety of sensors, predominantly cameras and radar, to scan the road ahead. Cameras capture visual information, providing a detailed image of the environment. Radar sensors, on the other hand, offer a more precise understanding of the distance and speed of objects. By combining data from these sources, the system creates a comprehensive picture of the surrounding environment, identifying vehicles, pedestrians, and other potential hazards.

Sophisticated algorithms then analyze this data to pinpoint potential collision risks. The system’s ability to recognize and categorize these hazards is crucial for proper response.

Distance Calculation

The precise calculation of distance is paramount to the AEB system’s functionality. A range of techniques are employed to achieve this accuracy. One method involves using the known speed and the time-of-flight data from the sensors to determine the distance to an object. Another method uses geometric principles based on the sensor’s angle of view and the object’s size and position within the field of view.

Combining the data from different sensors and utilizing advanced algorithms enhances the precision of the distance calculation.

Object Classification and Tracking

The system categorizes objects into different classes to tailor its response. For instance, a vehicle will be treated differently from a pedestrian or a cyclist. This classification is based on the shape, size, and movement patterns observed by the sensors. The system tracks the position of objects over time to predict their future trajectory and assess the likelihood of a collision.

Advanced algorithms and machine learning techniques are often employed to improve the accuracy of object classification and tracking. This ensures the system responds appropriately to the different types of hazards.

Collision Prediction

Determining the speed and direction of a potential collision is a crucial step. The system takes into account the vehicle’s speed, the object’s speed, and the distance between them. The system’s algorithms analyze the speed and trajectory of both the vehicle and the potential hazard to predict the likelihood of a collision. This process also considers the vehicle’s acceleration and deceleration capabilities.

For example, if a vehicle is approaching a stationary object at a high speed, the system will predict a higher probability of a collision compared to a slower approach. The calculated time-to-collision (TTC) provides a critical indicator for initiating braking.

Time-to-collision (TTC) is a critical parameter in AEB systems. It is the estimated time remaining until the vehicle collides with an object, assuming both vehicles continue at their current speeds.

This analysis, coupled with the distance calculations, allows the AEB system to initiate appropriate braking actions in a timely manner.

Decision Making Process

The core of automatic emergency braking (AEB) systems lies in their ability to swiftly and accurately assess hazardous situations and initiate appropriate responses. This crucial decision-making process is a complex interplay of sensor data interpretation and predefined safety criteria. AEB systems are designed to prevent collisions by intervening in a timely manner, and this decision-making process is fundamental to achieving that goal.

Intervention Criteria

AEB systems employ various criteria to determine if an intervention is necessary. These criteria are typically based on the relative speed and distance between the vehicle and the potential collision object, as well as the predicted trajectory of both. Crucially, the system must differentiate between a genuinely hazardous situation and a normal driving scenario.

Factors Considered for Braking Initiation

Several factors are considered when initiating the braking process. These include the object’s size and type (e.g., pedestrian, cyclist, or vehicle), the relative speed of the vehicle and the object, the distance between the vehicles, and the predicted trajectory of both. More sophisticated systems might also incorporate factors such as the driver’s behavior, road conditions, and weather. The system prioritizes a timely and safe intervention, aiming to avoid a collision while minimizing the risk of unintended consequences.

Safety Margins and Thresholds

Safety margins and thresholds are integral to the decision-making process. These parameters define the boundaries within which the system will intervene. For instance, a system might initiate a braking intervention if the distance to an object is below a certain threshold, or if the relative speed exceeds a certain value. These thresholds are carefully calibrated to balance the need for intervention with the avoidance of unnecessary braking interventions in non-hazardous situations.

Safety margins are crucial to prevent false positives, ensuring the system only intervenes when necessary. Examples include the distance to a pedestrian, the vehicle’s speed, and the speed differential.

Levels of Intervention

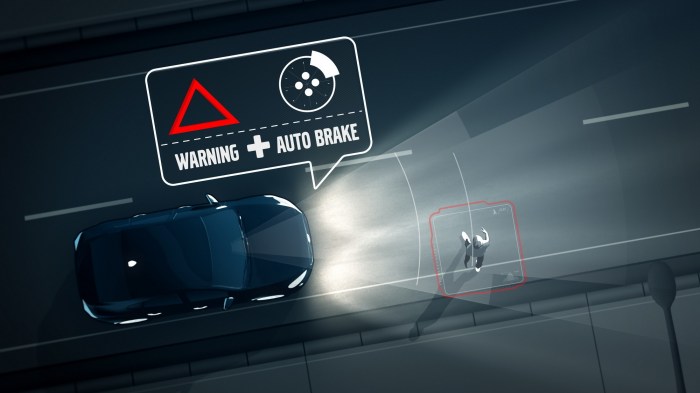

AEB systems employ different levels of intervention, ranging from warnings to automatic braking. A typical approach involves a warning system, such as visual and audible alerts, to inform the driver of a potential hazard. If the driver fails to react appropriately, the system may automatically apply the brakes to mitigate the risk of a collision. The level of intervention is often adjustable, with more aggressive systems automatically braking in a wider range of scenarios.

This is to address the needs of different driving conditions and situations.

• Warning Systems: These systems use visual and auditory alerts to inform the driver of a potential hazard. This gives the driver time to react and take control of the situation. The alerts are designed to be distinct and easily noticeable. This level is a preemptive measure to allow the driver to react.
• Partial Braking Intervention: In this scenario, the system might partially apply the brakes to slow down the vehicle, thereby reducing the severity of an impending collision. This intervention is often used in situations where the driver is close to an object but has time to react. The system aims to help the driver react and reduce the impact.
• Full Automatic Braking: This is the highest level of intervention, where the system automatically applies the brakes to prevent a collision. This is used in situations where the driver is unable or unwilling to react in time. Full automatic braking is designed to be the ultimate safety measure.

Braking System Integration

The automatic emergency braking (AEB) system relies heavily on seamless integration with the vehicle’s existing braking system. This integration ensures a coordinated and effective response to impending collisions, minimizing the risk of accidents. The AEB system’s calculations and decisions must translate directly into braking actions for optimal safety.The AEB system doesn’t operate in isolation. It leverages the vehicle’s existing braking components, including hydraulic actuators, brake lines, and sensors, while introducing its own control logic.

Automatic emergency braking systems use sensors to detect potential collisions and apply the brakes automatically. This proactive approach can prevent accidents, but like any complex system, it’s vulnerable to flaws. Understanding how these systems work is crucial, and, similarly, learning about Ethical hacking techniques can help identify potential vulnerabilities. Ultimately, a deeper understanding of both the system’s inner workings and the possible vulnerabilities is key to ensuring these safety features operate reliably.

This ensures a coordinated and effective braking response.

Integration Process

The AEB system’s interaction with the vehicle’s braking system follows a precise sequence. The AEB’s electronic control unit (ECU) analyzes the data from various sensors, determining if a potential collision is imminent. Once a decision is made to initiate braking, the AEB ECU communicates with the vehicle’s braking ECU. This communication triggers the necessary braking actions.

Role of Electronic Control Units (ECUs)

Electronic control units (ECUs) play a crucial role in coordinating the braking process. The AEB ECU receives data from the sensor suite and calculates the optimal braking force required to avoid or mitigate the collision. The braking ECU, which controls the hydraulic system, receives the commands from the AEB ECU and activates the braking system components accordingly. The AEB ECU continuously monitors the braking response to ensure safety and effectiveness.

This continuous monitoring ensures the braking response aligns with the calculated optimal force.

Component Interconnections

The AEB system comprises several interconnected components. Their interactions are crucial for the system’s functionality.

Driver Assistance and Feedback

Automatic Emergency Braking (AEB) systems are designed not only to react proactively but also to provide the driver with clear and timely feedback. This feedback loop is crucial for driver awareness and allows them to maintain control of the vehicle while the system works. Understanding the warning systems and the driver’s options is essential for safe and effective use of AEB.

Feedback Mechanisms

AEB systems use a variety of visual and auditory cues to inform the driver about the system’s actions and potential hazards. These cues help drivers understand the system’s activity and potential need for intervention. Effective feedback is paramount for driver engagement and safety.

Warning Systems and Indicators

AEB systems employ a range of visual and auditory signals to communicate potential hazards and the system’s response. These signals are designed to be clear, distinct, and easily understandable by the driver.

• Visual Warnings: These are often displayed on the vehicle’s instrument cluster or a dedicated screen. Common visual indicators include warning icons, symbols, or coloured lights, such as a yellow triangle, to signify an imminent hazard. The display can also provide distance to the hazard or a progressive visual warning of increasing intensity as the risk level escalates.

  This proactive visual feedback enables the driver to anticipate potential collisions and react accordingly.

• Auditory Warnings: These alerts are commonly employed in conjunction with visual signals. They can range from subtle beeps to more pronounced alarms. The sound can vary depending on the severity of the detected risk, such as increasing in pitch or frequency. This auditory component is crucial for alerting the driver, especially in situations where visual attention is diverted.

Driver Override and Adjustment

AEB systems are designed with driver override options to ensure that the system’s actions are consistent with the driver’s intent. This is crucial to maintain control of the vehicle.

• Override Functionality: Most modern AEB systems allow the driver to override the system’s braking intervention. This might be activated through a button or by applying the brake pedal forcefully. This feature ensures the driver retains control in situations where the system’s intervention might be inappropriate.
• System Adjustments: Some systems allow the driver to adjust the sensitivity or aggressiveness of the AEB’s response. This flexibility is valuable for customizing the system’s behavior to suit individual driving preferences and road conditions. For example, drivers in congested urban environments might prefer a more conservative setting, while those on open highways might prefer a more assertive one.

Warning System Table

Testing and Calibration: How Automatic Emergency Braking Works

Thorough testing and calibration are crucial for ensuring the reliable and safe operation of automatic emergency braking (AEB) systems. These processes verify that the system accurately detects potential hazards, calculates the appropriate braking response, and integrates seamlessly with the vehicle’s existing braking mechanisms. Effective testing methodologies are essential for validating the system’s performance across various conditions and identifying any potential weaknesses.

Testing Methods for AEB Effectiveness

Rigorous testing procedures are employed to evaluate the AEB system’s ability to respond effectively to different hazard scenarios. These tests are designed to cover a wide range of conditions, including varying speeds, distances, and environmental factors. Simulated accident scenarios are employed to ensure the system’s ability to recognize and react to critical situations.

Testing Scenarios and Environments

A variety of testing environments are utilized to assess the system’s performance under diverse conditions. These include controlled laboratory settings, where factors such as lighting, weather, and road surfaces can be precisely controlled, and real-world road tests, which provide a more comprehensive evaluation in varying and unpredictable conditions. Real-world testing involves driving in different environments, including various weather conditions, different road types, and different traffic scenarios.

Furthermore, testing is conducted to assess the system’s performance in diverse lighting conditions, such as low-light situations and varying levels of visibility.

Calibration for Optimal Performance and Safety

The calibration process for AEB systems involves adjusting parameters to optimize the system’s performance and ensure safety. These adjustments are crucial for maintaining the system’s responsiveness and effectiveness under different driving conditions. Calibration procedures involve fine-tuning parameters such as object recognition thresholds, braking force adjustments, and reaction times to ensure consistent and reliable operation. The calibration process often involves iterative testing and refinement to optimize performance under different conditions.

Data from various tests are used to adjust parameters to improve performance and safety.

Testing Procedures and Criteria

The following table Artikels various testing procedures and their corresponding criteria for evaluating AEB performance:

Safety and Reliability Considerations

Automatic Emergency Braking (AEB) systems are crucial for enhancing road safety, but their effectiveness hinges on their reliability and safety features. A robust AEB system must be able to reliably detect potential hazards, accurately assess the risk, and initiate appropriate braking actions without causing harm to occupants or other road users. Maintaining a balance between aggressive response and the potential for unnecessary braking is critical.Ensuring the safety and reliability of AEB systems requires a multifaceted approach that considers various factors, from sensor accuracy to braking system performance.

This involves stringent testing protocols, meticulous calibration procedures, and a comprehensive understanding of potential risks and errors. Ultimately, the goal is to minimize the chances of a malfunction or inappropriate response, thereby maximizing the safety benefit for all road users.

Importance of Safety in AEB Systems

AEB systems are designed to prevent collisions by automatically applying brakes when a potential collision is detected. The safety of AEB systems is paramount, as a malfunction or inappropriate response can lead to severe consequences. Properly functioning AEB systems reduce the severity of accidents and potentially save lives. The effectiveness of AEB systems in preventing accidents is directly correlated to their safety and reliability.

Reliable AEB systems can significantly reduce the risk of rear-end collisions and other accidents.

Factors Contributing to AEB System Reliability

Several factors contribute to the reliability of AEB systems. These include the accuracy and precision of sensor technology, the efficiency of the object recognition and distance calculation algorithms, and the responsiveness of the braking system integration. Robust calibration procedures and regular maintenance are also crucial. Accurate sensor data is essential for the AEB system to make precise decisions.

Measures to Mitigate Potential Risks and Errors

To mitigate potential risks and errors, AEB systems incorporate several measures. These include redundancy in sensor systems, robust algorithms for object recognition and distance calculation, and multiple braking strategies to account for various scenarios. The use of multiple sensors (e.g., radar and cameras) helps to increase accuracy and reduce the chance of false positives or negatives. A backup system to override the primary AEB system can be used in case of a malfunction.

Safety Standards for AEB Systems

Safety standards for AEB systems are established by organizations like the National Highway Traffic Safety Administration (NHTSA) in the US and other global regulatory bodies. These standards dictate the performance requirements and testing procedures for AEB systems, ensuring a certain level of safety and reliability. These standards often include criteria for the system’s response time, accuracy, and effectiveness in various scenarios.

Compliance with these standards is crucial to ensure the safety and efficacy of AEB systems.For example, standards might specify minimum braking distances under different conditions (e.g., varying speeds, weather conditions, and types of vehicles) and require rigorous testing procedures to confirm the system’s performance in these conditions.

Future Trends and Developments

Automatic Emergency Braking (AEB) systems are continuously evolving, driven by advancements in sensor technology, computing power, and a growing emphasis on safety. These developments promise to further enhance the capabilities of AEB, making roads safer for everyone. The future of AEB systems is characterized by a push towards increased accuracy, faster response times, and broader application scenarios.

Enhanced Sensor Fusion and Data Processing

AEB systems are increasingly incorporating multiple sensor types for a more comprehensive understanding of the driving environment. This integration, often called sensor fusion, combines data from radar, cameras, and lidar to provide a more detailed and reliable view of the surrounding area. Improved data processing algorithms are crucial for handling this complex data input, enabling quicker identification of potential hazards and better decision-making.

Advanced Object Recognition and Classification

Future AEB systems will incorporate more sophisticated object recognition capabilities. This includes improved identification of vulnerable road users like cyclists and pedestrians, especially in challenging lighting conditions and diverse environments. Accurate classification of objects is vital for tailoring the braking response to the specific situation, such as distinguishing between a stationary object and a moving vehicle.

Automatic emergency braking systems use sensors to detect potential collisions, much like how NFTs leverage blockchain technology for secure transactions. This process, much like the underlying cryptographic structure of How NFTs work , ultimately aims to prevent accidents by applying the brakes automatically. The system’s effectiveness relies on precise sensor readings and quick response times, just as efficient blockchain verification is critical to the integrity of NFTs.

Improved Decision-Making Algorithms

Sophisticated machine learning algorithms are being employed to optimize the decision-making process of AEB systems. These algorithms can analyze vast amounts of driving data to predict potential hazards and tailor the braking response in real-time, allowing for more precise and timely interventions. This includes recognizing complex driving scenarios, like merging traffic or sudden lane changes.

Integration with Vehicle Dynamics Control Systems

Future AEB systems are likely to be integrated more seamlessly with vehicle dynamics control systems. This integration will enable a more holistic approach to handling critical situations, considering not only the need to brake but also steering control and other vehicle dynamics to improve overall safety. Such integration is essential for more controlled responses in emergency situations.

Adaptive and Contextual Responses

AEB systems are evolving to become more adaptive and context-aware. Future systems will take into account factors such as weather conditions, road geometry, traffic flow, and driver behavior to adjust the braking response accordingly. This adaptive response is crucial for optimal performance in a wide range of situations, providing safety that is relevant to the situation.

Table: Potential Improvements in AEB Systems

Real-World Examples and Case Studies

Automatic Emergency Braking (AEB) systems are demonstrating their value in preventing accidents and reducing the severity of collisions. Numerous real-world examples highlight the effectiveness of AEB in various traffic scenarios. These systems have evolved significantly, leading to a marked improvement in road safety.AEB systems’ effectiveness is demonstrably improved by their integration with advanced sensor technologies and sophisticated algorithms.

The precise detection of potential hazards, accurate distance calculations, and swift braking responses contribute significantly to accident avoidance. These systems have been instrumental in mitigating the impact of many collisions, showcasing their importance in modern vehicle safety.

Examples of AEB Systems in Various Vehicle Models

Different vehicle manufacturers have implemented AEB systems in their models. Leading manufacturers are continually incorporating AEB technologies into their vehicle lines. This includes various vehicle classes, such as passenger cars, SUVs, and trucks. The integration of AEB technology reflects a commitment to enhanced safety features across different vehicle categories.

Real-World Scenarios Where AEB Systems Have Prevented Accidents

Numerous incidents illustrate the effectiveness of AEB. A driver approaching a stopped vehicle at low speed, for example, experienced AEB activation, preventing a rear-end collision. In another instance, a vehicle detected an obstacle in its path and automatically applied the brakes, avoiding a more significant accident. These examples showcase the active role AEB plays in preventing collisions, especially in situations where driver reaction time is insufficient.

Effectiveness of AEB in Different Traffic Conditions

The performance of AEB systems varies based on the complexity of the traffic environment. AEB systems perform effectively in various traffic conditions, from highway driving to city streets and parking lots. The effectiveness is significantly influenced by factors such as weather conditions, visibility, and the presence of pedestrians or cyclists.

Comparison of AEB Systems Performance

Note: This table provides a simplified comparison. Real-world performance may vary based on specific vehicle models and environmental conditions.

Last Word

In conclusion, automatic emergency braking is a critical safety feature in modern vehicles. By combining sophisticated sensor technology, advanced algorithms, and precise braking mechanisms, AEB systems significantly reduce the risk of collisions. Understanding the process, from detection to intervention, provides insight into the complex engineering behind this life-saving technology. Future developments promise even greater accuracy and responsiveness, making AEB systems an even more effective tool in preventing accidents.

FAQs

What are the different types of sensors used in AEB systems?

AEB systems commonly use radar, cameras, and lidar sensors. Each type has its strengths and weaknesses in terms of range, accuracy, and cost.

How does AEB determine the severity of a potential collision?

The system calculates the distance, speed, and direction of an object. This data, along with other factors like vehicle speed and the characteristics of the object, are used to assess the potential for a collision and the level of intervention required.

Can a driver override the AEB system?

Yes, most AEB systems allow the driver to override the automatic braking function. The system provides visual and/or audible warnings to alert the driver of the potential hazard.

What are the safety standards for AEB systems?

Safety standards for AEB systems vary by region and jurisdiction. These standards aim to ensure optimal performance, reliability, and responsiveness to minimize the risk of accidents.
